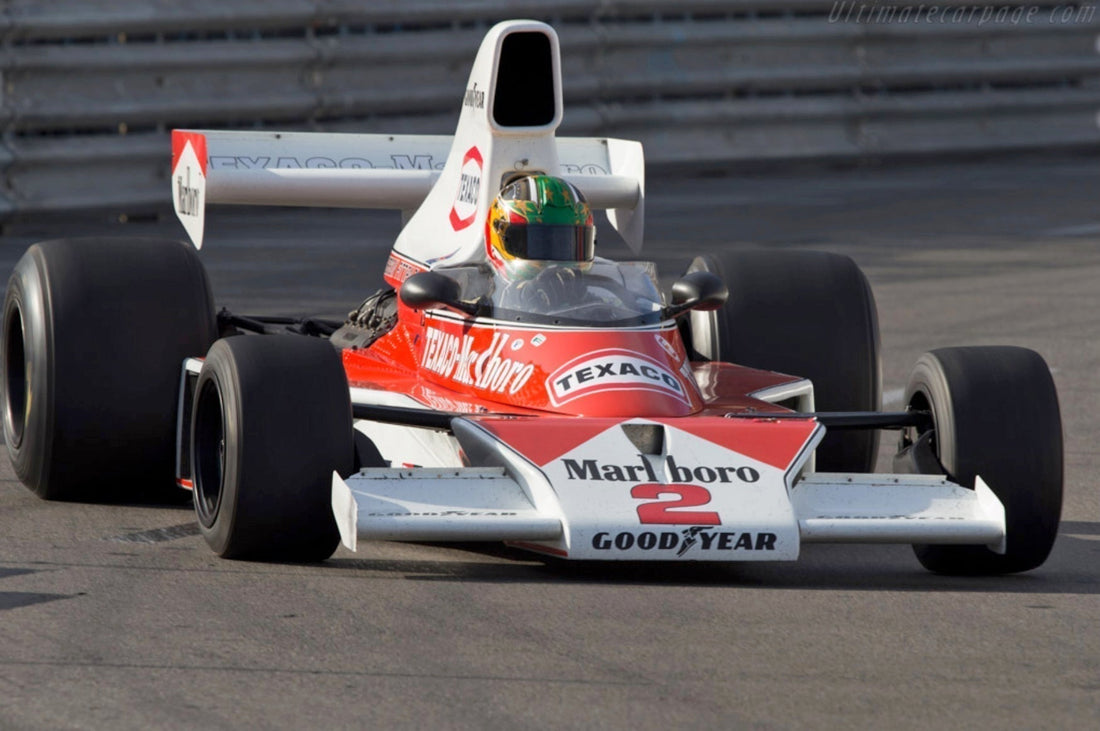

1974 McLaren M23/8: The Championship-Winning Formula One Machine That Defined McLaren’s Modern Era

The 1974 McLaren M23/8 marked a pivotal moment in both McLaren’s history and the broader evolution of Formula One engineering. As the chassis that carried Emerson Fittipaldi to his second Drivers’ Championship — and McLaren’s first-ever Constructors’ title — the M23/8 combined aerodynamic refinement, mechanical reliability, and operational consistency to become a symbol of engineering discipline at a time when Formula One technology was advancing at unprecedented speed.

Quick Takeaways

• The McLaren M23/8 powered Emerson Fittipaldi to the 1974 Formula One World Championship.
• Its aluminum monocoque and Ford-Cosworth DFV engine delivered a balance of speed, durability, and handling precision.
• The M23 platform set McLaren’s competitive foundation throughout the 1970s and influenced future F1 design standards.



Development and Engineering

The McLaren M23 series was first introduced in 1973 and was designed by Gordon Coppuck, who had previously worked under Robin Herd on the M16 IndyCar. The design philosophy carried over: a low, narrow monocoque emphasizing aerodynamic cleanliness and structural rigidity. McLaren had refined its formula to near perfection by the time the M23/8 chassis emerged in 1974.

The car’s aluminum monocoque chassis reinforced with glassfibre body panels was critical for stability under high lateral loads. The M23/8 weighed approximately 575 kg, meeting Formula One’s minimum weight regulations at the time while maintaining balance between front-end responsiveness and rear traction.

At its heart lay the proven Ford-Cosworth DFV 3.0-liter V8, producing around 465 horsepower at 10,500 rpm. This power unit was mated to a Hewland FG400 five-speed gearbox, delivering both reliability and mechanical simplicity. Suspension geometry followed conventional double wishbone configurations with coil-over dampers, which were optimized through iterative testing at circuits like Silverstone and Kyalami.

Braking was handled by Lockheed four-piston calipers acting on ventilated discs, while Goodyear racing tires provided grip consistency — a crucial factor as tire compounds evolved rapidly during the early 1970s.

The 1974 Season and Fittipaldi’s Championship

Emerson Fittipaldi joined McLaren from Lotus in late 1973, bringing championship-winning experience and a disciplined driving style that suited the M23’s balanced handling characteristics. McLaren entered the 1974 season with a lot of strong competition — Ferrari’s 312B3, Tyrrell’s 007, and Lotus’s 76 — but the M23/8 quickly demonstrated its competitiveness.

Fittipaldi’s winning streak began with a victory at the Argentine Grand Prix, which established an early momentum. Additional podiums in Brazil, Belgium, and Sweden underscored the car’s reliability. Despite mid-season challenges, including mechanical failures and fierce competition from Clay Regazzoni’s Ferrari, the M23  remained competitive across varying circuits.

Fittipaldi’s win at the Belgian Grand Prix at Nivelles highlighted McLaren’s improved aerodynamic efficiency, especially on medium-speed circuits. By the season’s close, Fittipaldi secured the championship with 55 points, just three ahead of Regazzoni. McLaren also claimed its first Constructors’ Championship, a milestone that would define its engineering identity for decades.

Aerodynamics and Technical Refinements

Aerodynamic experimentation was a hallmark of the 1974 season. The M23/8 featured adjustable front and rear wing profiles, allowing the team to fine-tune downforce depending on a circuit’s characteristics. McLaren engineers implemented revisions to endplate design and wing camber to reduce drag on high-speed tracks such as Monza and Hockenheim.

The sidepod layout, which was narrower and more streamlined than the earlier M23 variants, improved airflow to the rear wing and engine bay. Cooling systems were also refined, with repositioned radiators enhancing thermal efficiency without adding frontal area.

Throughout the year, McLaren continuously adapted to Goodyear’s evolving tire compounds. Suspension geometry and camber settings were recalibrated race-to-race, demonstrating the team’s increasing use of data-driven performance adjustments — a precursor to the analytical engineering seen in later F1 eras.

Operational Discipline and Team Strategy

While the M23/8’s design excellence was critical, McLaren’s operational execution also set it apart from its rivals. Under team manager Teddy Mayer, the organization developed a systematic approach to race preparation wherein pit coordination, component lifting, and driver feedback loops were formalized.

McLaren engineers introduced structured data logging through manual observation and mechanical readings that enabled consistent adjustments. This process-driven methodology helped prevent reliability lapses and maximized points accumulation, even when outright speed was lacking. This disciplined operational model would later evolve under Ron Dennis into the highly analytical culture that defined McLaren through the 1980s and beyond.

Legacy and Influence

The McLaren M23 platform remained competitive well beyond its initial design intent. Successive updates kept the car racing through 1976. Notably, James Hunt’s 1976 World Championship was also achieved in a development of the same basic chassis, further emphasizing the M23’s adaptability.

In historical context, the 1974 McLaren M23/8 represented a transitional era: the balance between mechanical simplicity and the emerging importance of optimizing for aerodynamics. Its straightforward engineering approach combined ease of maintenance with predictable handling, which made it a favorite among mechanics and drivers alike.

Today, chassis M23/8 is preserved in McLaren’s heritage collection and is often exhibited at events such as the Goodwood Festival of Speed. It stands as both a technical artifact and a milestone — the car that transformed McLaren from a promising constructor into a perennial contender.



---
